质粒名称: | mARG1 cassette 3 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 134345 |
存储实验室: | Mikhail Shapiro |
载体骨架基本信息 |
|
载体名称: | pAF PB |
载体抗性: | 氨苄青霉素 |
空载体大小: | -- |
完整质粒大小: | 9002 bp |
载体类型: | 哺乳动物表达,合成生物学 |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 30 ℃ |
插入基因信息 |
|
插入基因名称: | mARG 1 cassete 3,Mammalian acoustic reporter gene1 cassette 3 |
物种来源: | Bacillus megaterium |
插入大小: | 2721 bp |
启动子 | TRE3G |
克隆方法: | Gibson克隆 |
5' 测序引物 | SP6 Promoter |
3' 测序引物 | GAGCCTCTACGACTCCGTGAA |
文献引用方法 |
|
材料和方法部分: | mARG1 cassette 3 was a gift from Mikhail Shapiro (Addgene plasmid # 134345 ; http://n2t.net/addgene:134345 ; RRID:Addgene_134345) |
参考文献部分: | Ultrasound imaging of gene expression in mammalian cells. Farhadi A, Ho GH, Sawyer DP, Bourdeau RW, Shapiro MG. Science. 2019 Sep 27;365(6460):1469-1475. doi: 10.1126/science.aax4804. 10.1126/science.aax4804 PubMed 31604277 |
买家导航
载体基本信息

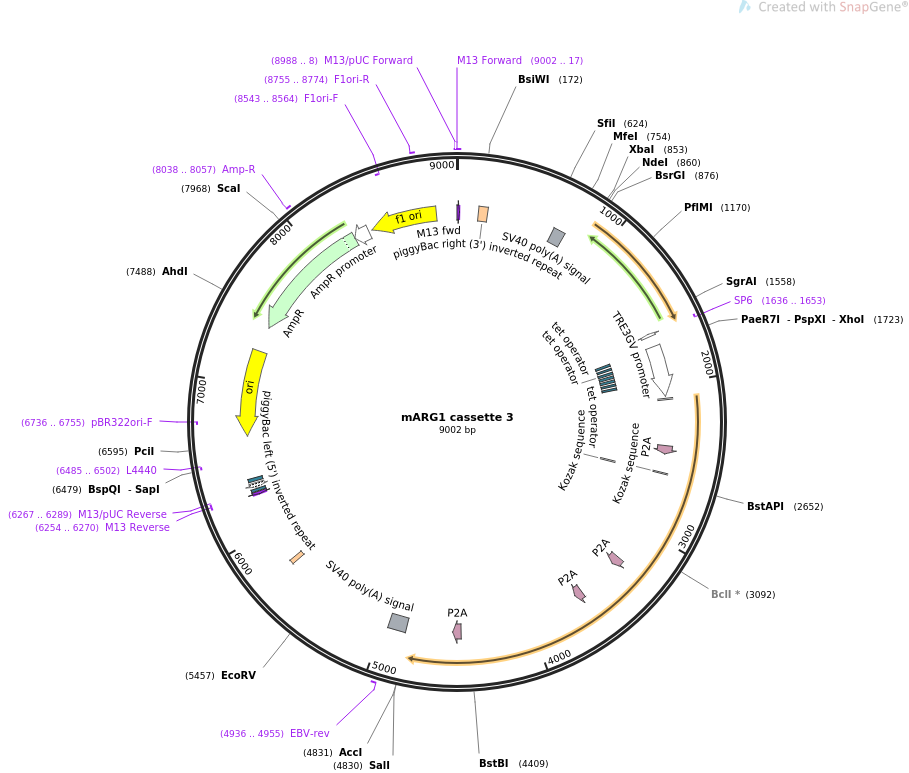

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS mARG1 cassette 3 9002 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION Mammalian acoustic reporter gene 1 cassette 3 on the piggyBac trasposon plasmid.. ACCESSION . VERSION . KEYWORDS mARG1 cassette 3 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 9002) AUTHORS Farhadi A, Ho GH, Sawyer DP, Bourdeau RW, Shapiro MG TITLE Ultrasound imaging of gene expression in mammalian cells. JOURNAL Science. 2019 Sep 27;365(6460):1469-1475. doi: 10.1126/science.aax4804. PUBMED 31604277 REFERENCE 2 (bases 1 to 9002) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..9002 /organism="synthetic DNA construct" /mol_type="other DNA" primer_bind 1..17 /label=M13 fwd /note="common sequencing primer, one of multiple similar variants" repeat_region 147..209 /label=piggyBac right (3') inverted repeat /note="piggyBac transposon-specific inverted terminal repeat sequence (ITR)" polyA_signal 664..745 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" promoter complement(1635..1653) /label=SP6 promoter /note="promoter for bacteriophage SP6 RNA polymerase" primer_bind complement(1636..1653) /label=SP6 /note="SP6 promoter, forward primer" promoter 1726..2075 /label=TRE3GV promoter /note="3rd-generation Tet-responsive promoter that can be activated by binding of Tet-On(R) 3G, optimized for retroviral and lentiviral vectors" protein_bind 1734..1752 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" protein_bind 1770..1788 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" protein_bind 1806..1824 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" protein_bind 1842..1860 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" protein_bind 1878..1896 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" protein_bind 1914..1932 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" protein_bind 1950..1968 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" regulatory 2089..2098 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 2413..2469 /codon_start=1 /product="2A peptide from porcine teschovirus-1 polyprotein" /label=P2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="ATNFSLLKQAGDVEENPGP" regulatory 2596..2605 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" regulatory 2600..2609 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 3253..3309 /codon_start=1 /product="2A peptide from porcine teschovirus-1 polyprotein" /label=P2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="ATNFSLLKQAGDVEENPGP" CDS 3592..3648 /codon_start=1 /product="2A peptide from porcine teschovirus-1 polyprotein" /label=P2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="ATNFSLLKQAGDVEENPGP" CDS 4474..4530 /codon_start=1 /product="2A peptide from porcine teschovirus-1 polyprotein" /label=P2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="ATNFSLLKQAGDVEENPGP" polyA_signal 4845..4966 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind 4936..4955 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" repeat_region 5729..5763 /label=piggyBac left (5') inverted repeat /note="piggyBac transposon-specific inverted terminal repeat sequence (ITR)" primer_bind complement(6254..6270) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(6254..6270) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(6267..6289) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 6278..6294 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(6302..6332) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 6347..6368 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(6485..6502) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(6656..7244) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(6736..6755) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(7415..8275) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 8038..8057 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(8276..8380) /gene="bla" /label=AmpR promoter rep_origin complement(8406..8861) /direction=LEFT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(8543..8564) /label=F1ori-F /note="F1 origin, forward primer" primer_bind 8755..8774 /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 8988..8 /label=M13/pUC Forward /note="In lacZ gene" primer_bind 9002..17 /label=M13 Forward /note="In lacZ gene. Also called M13-F20 or M13 (-21) Forward" ORIGIN 1 gtaaaacgac ggccagtgag cgcgcctcgt tcattcacgt ttttgaaccc gtggaggacg 61 ggcagactcg cggtgcaaat gtgttttaca gcgtgatgga gcagatgaag atgctcgaca 121 cgctgcagaa cacgcagcta gattaaccct agaaagataa tcatattgtg acgtacgtta 181 aagataatca tgtgtaaaat tgacgcatgt gttttatcgg tctgtatatc gaggtttatt 241 tattaatttg aatagatatt aagttttatt atatttacac ttacatacta ataataaatt 301 caacaaacaa tttatttatg tttatttatt tattaaaaaa aacaaaaact caaaatttct 361 tctataaagt aacaaaactt ttatgaggga cagccccccc ccaaagcccc cagggatgta 421 attacgtccc tcccccgcta gggggcagca gcgagccgcc cggggctccg ctccggtccg 481 gcgctccccc cgcatccccg agccggcagc gtgcggggac agcccgggca cggggaaggt 541 ggcacgggat cgctttcctc tgaacgcttc tcgctgctct ttgagcctgc agacacctgg 601 ggggatacgg ggaaaaggcc tccacggcca ctagttttcc ccgaaaagtg ccacctgacg 661 tcggcagtga aaaaaatgct ttatttgtga aatttgtgat gctattgctt tatttgtaac 721 cattataagc tgcaataaac aagttaacaa caacaattgc attcatttta tgtttcaggt 781 tcagggggag gtgtgggagg ttttttaaag caagtaaaac ctctacaaat gtggtatggc 841 tgattatgat cctctagaca tatgctgcag tcacttgtac agctcatcca tgcccagggt 901 gatgccagcg gcggtccgaa attccagcag caccatgtgg tcccgcttct cgttggggtc 961 cttgctcagc acgctctggg tgctcaggta gtggctatca ggcagcagca cggggccatc 1021 tccgatgggg gtgttctgct ggtagtggtc ggccagctgc acgctgccat cttccacgtt 1081 gtgccggatc ttgaagttca ctttgatgcc gtttttctgc ttcacggcca tgatgtagat 1141 gttgtggctg ttgaagttgt actccagctt gtggcccagg atgttgccgt cctctttgaa 1201 gtccacgccc ttcagctcga tccggttcac gagggtgtcg ccctcgaact tcacttcggc 1261 tctggtcttg taggtgccgt cgtccttgaa gaagatggtc cgttcctgca cgtagccctc 1321 gggcatggcg ctcttgaaga aatcgtgctg cttcatgtgg tcggggtatc tggcgaagca 1381 ctgcacgccg tgagacagtg tggtcacgag ggtaggccaa ggcacgggca gcttgccggt 1441 ggtgcagatg aacttcaggg tcagcttgcc atttgtggcg tcgccttcgc cctctccccg 1501 cacagagaac ttgtggccgt tcacgtcgcc atccagttcc accaggatgg gcaccacgcc 1561 ggtgaacagt tcctcgccct tggacaccat ggtgaagggt actggatccg agctcggtac 1621 ctgcaggcgt accttctata gtgtcaccta aatgcgatct gacggttcac taaacgagct 1681 ctgcttatat aggcctccca ccgtacacgc cacctcgaca tactcgagtt tactccctat 1741 cagtgataga gaacgtatga agagtttact ccctatcagt gatagagaac gtatgcagac 1801 tttactccct atcagtgata gagaacgtat aaggagttta ctccctatca gtgatagaga 1861 acgtatgacc agtttactcc ctatcagtga tagagaacgt atctacagtt tactccctat 1921 cagtgataga gaacgtatat ccagtttact ccctatcagt gatagagaac gtatgtcgag 1981 gtaggcgtgt acggtgggcg cctataaaag cagagctcgt ttagtgaacc gtcagatcgc 2041 ctggagcaat tccacaacac ttttgtctta tacttggtac ctatgcatgc caccatggcc 2101 gtggaacaca acatgcagag cagcaccatc gtggacgtgc tggaaaagat cctggacaag 2161 ggcgtcgtga tcgccgggga catcacagtg ggaatcgccg acgtggaact gctgaccatc 2221 aagatccggc tgatcgtggc cagcgtggac aaggccaaag aaatcggcat ggattggtgg 2281 gagaacgacc cctacctgag cagcaagggc gccaacaaca aggccctgga agaggaaaac 2341 aagatgctgc acgagcggct gaaaacactg gaagagaaga tcgagacaaa gcgcggtgcc 2401 ccgggatctg gcgcaacaaa ttttagtctt ttaaagcagg caggagacgt cgaggaaaac 2461 cctggacccg tgagcgagac aaacgagaca ggcatctaca tcttcagcgc catccagaca 2521 gacaaggatg aggaattcgg cgccgtggaa gtggaaggga ccaaggctga gacattcctg 2581 atccggtata aggacgccgc catggtggcc gccgaagtgc ccatgaagat ctaccacccc 2641 aaccggcaga acctgctgat gcaccagaat gccgtggccg ccatcatgga caagaacgac 2701 accgtgatcc ccatcagctt cggcaacgtg ttcaagagca aagaggacgt gaaggtgctc 2761 ctggaaaacc tgtaccccca gttcgagaag ctgttccccg ccatcaaggg aaagatcgaa 2821 gtgggcctga aggtgatcgg caagaaagag tggctcgaaa agaaagtgaa cgagaacccc 2881 gagctggaaa aagtgtccgc cagcgtgaag ggcaagagcg aggccgctgg ctactacgag 2941 agaatccagc tgggcggcat ggcccagaag atgttcacaa gcctgcagaa agaagtgaaa 3001 accgacgtgt tcagccccct ggaagaagcc gccgaggccg ccaaagccaa tgagcctaca 3061 ggcgaaacaa tgctgctgaa cgccagcttc ctgatcaaca gagaggatga ggccaagttc 3121 gacgagaaag tcaatgaggc ccacgagaac tggaaggata aggccgactt ccactacagc 3181 ggcccctggc ccgcctacaa cttcgtgaac atccggctga aggtggaaga gaagggggca 3241 cctggctcgg gagcgaccaa cttctcatta ctcaaacaag ccggagacgt tgaggagaat 3301 ccaggccctg tgctgcacaa gctcgtgacc gcccccatca acctggtcgt gaagatcggc 3361 gagaaggtgc aggaagaggc cgacaagcag ctgtacgacc tgcccaccat ccagcagaag 3421 ctgatccagc tgcagatgat gttcgagctg ggcgagatcc ccgaggaagc cttccaggaa 3481 aaagaggacg aactgctgat gagatacgag atcgccaagc ggcgcgagat tgagcagtgg 3541 gaagaactga cccagaagcg gaatgaggaa agcggtgccc cgggatctgg cgcaacaaat 3601 tttagtcttt taaagcaggc aggagacgtc gaggaaaacc ctggacccgt gggcgagctg 3661 ctgtacctct acggcctgat ccccaccaaa gaggccgctg ctatcgagcc cttcccattc 3721 tacaagggct tcgacggcga gcacagcctg taccctatcg ccttcgacca agtgaccgcc 3781 gtggtgttca agctggacgc cgacacctac agcgagaaag tgatccagga aaagatggaa 3841 caggacatga gctggctgca ggaaaaggcc ttccaccacc acgagacagt ggccgccctg 3901 tatgaggaat tcaccatcat ccccctgaag ttctgcacca tctataaggg agaggaatcc 3961 ctgcaggccg ccatcgagat caacaaagag aagatcgaaa actccctgac cctgctgcag 4021 ggcaacgagg aatggaacgt gaagatctac tgcgacgaca ccgagctgaa gaagggcatc 4081 agcgagacaa acgagagcgt gaaggccaag aagcaggaaa tcagccacct gagccccggc 4141 agacagttct tcgagaagaa gaagattgac cagctcatcg agaaagagct ggaactgcac 4201 aagaacaaag tgtgcgagga aatccacgac aagctgattg agctgagcct ctacgactcc 4261 gtgaagaaga actggtccaa ggacgtgaca ggcgctgccg aacagatggc ctggaacagc 4321 gtgttcctgc tgcccagcct gcagatcacc aagttcgtga acgagatcga ggaactccag 4381 cagcggctgg agaacaaggg atggaagttc gaagtgaccg gcccctggcc tccctaccac 4441 ttcagcagct ttgccggggc acctggctcg ggagcgacca acttctcatt actcaaacaa 4501 gccggagacg ttgaggagaa tccaggccct gtgcagcccg tgtcccaggc caacggcaga 4561 atccacctgg atcccgatca ggccgaacag ggactggccc agctcgtgat gaccgtgatc 4621 gagctgctgc ggcagatcgt ggaacggcac gccatgagaa gagtggaagg cggcaccctg 4681 accgacgagc agatcgagaa tctgggaatc gccctgatga acctggaaga gaagatggac 4741 gagctgaaag aggtgttcgg actggacgcc gaggacctga acatcgacct gggccctctg 4801 ggcagcctgc tgtgaactag ttcgataccg tcgaccgtta actaaacttg tttattgcag 4861 cttataatgg ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt 4921 cactgcattc tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctggaatt 4981 gactcaaatg atgtcaatta gtctatcaga agctcatctg gtctcccttc cgggggacaa 5041 gacatccctg tttaatattt aaacagcagt gttcccaaac tgggttctta tatcccttgc 5101 tctggtcaac caggttgcag ggtttcctgt cctcacagga acgaagtccc taaagaaaca 5161 gtggcagcca ggtttagccc cggaattgac tggattcctt ttttagggcc cattggtatg 5221 gctttttccc cgtatccccc caggtgtctg caggctcaaa gagcagcgag aagcgttcag 5281 aggaaagcga tcccgtgcca ccttccccgt gcccgggctg tccccgcacg ctgccggctc 5341 ggggatgcgg ggggagcgcc ggaccggagc ggagccccgg gcggctcgct gctgccccct 5401 agcgggggag ggacgtaatt acatccctgg gggctttggg ggggggctgt ccctgatatc 5461 tataacaaga aaatatatat ataataagtt atcacgtaag tagaacatga aataacaata 5521 taattatcgt atgagttaaa tcttaaaagt cacgtaaaag ataatcatgc gtcattttga 5581 ctcacgcggt cgttatagtt caaaatcagt gacacttacc gcattgacaa gcacgcctca 5641 cgggagctcc aagcggcgac tgagatgtcc taaatgcaca gcgacggatt cgcgctattt 5701 agaaagagag agcaatattt caagaatgca tgcgtcaatt ttacgcagac tatctttcta 5761 gggttaatct agctgcatca ggatcatatc gtcgggtctt ttttccggct cagtcatcgc 5821 ccaagctggc gctatctggg catcggggag gaagaagccc gtgccttttc ccgcgaggtt 5881 gaagcggcat ggaaagagtt tgccgaggat gactgctgct gcattgacgt tgagcgaaaa 5941 cgcacgttta ccatgatgat tcgggaaggt gtggccatgc acgcctttaa cggtgaactg 6001 ttcgttcagg ccacctggga taccagttcg tcgcggcttt tccggacaca gttccggatg 6061 gtcagcccga agcgcatcag caacccgaac aataccggcg acagccggaa ctgccgtgcc 6121 ggtgtgcaga ttaatgacag cggtgcggcg ctgggatatt acgtcagcga ggacgggtat 6181 cctggctgga tgccgcagaa atggacatgg ataccccgtg agttacccgg cgggcgcgct 6241 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac 6301 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac 6361 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc 6421 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg 6481 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc 6541 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt 6601 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc 6661 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa 6721 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc 6781 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg 6841 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc 6901 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc 6961 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca 7021 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact 7081 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg 7141 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt 7201 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct 7261 tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga 7321 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa 7381 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac 7441 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga 7501 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc 7561 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca 7621 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta 7681 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg 7741 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc 7801 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg 7861 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt 7921 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt 7981 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata 8041 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc 8101 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac 8161 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa 8221 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct 8281 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat 8341 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc 8401 cacctaaatt gtaagcgtta atattttgtt aaaattcgcg ttaaattttt gttaaatcag 8461 ctcatttttt aaccaatagg ccgaaatcgg caaaatccct tataaatcaa aagaatagac 8521 cgagataggg ttgagtgttg ttccagtttg gaacaagagt ccactattaa agaacgtgga 8581 ctccaacgtc aaagggcgaa aaaccgtcta tcagggcgat ggcccactac gtgaaccatc 8641 accctaatca agttttttgg ggtcgaggtg ccgtaaagca ctaaatcgga accctaaagg 8701 gagcccccga tttagagctt gacggggaaa gccggcgaac gtggcgagaa aggaagggaa 8761 gaaagcgaaa ggagcgggcg ctagggcgct ggcaagtgta gcggtcacgc tgcgcgtaac 8821 caccacaccc gccgcgctta atgcgccgct acagggcgcg tcccattcgc cattcaggct 8881 gcgcaactgt tgggaagggc gatcggtgcg ggcctcttcg ctattacgcc agctggcgaa 8941 agggggatgt gctgcaaggc gattaagttg ggtaacgcca gggttttccc agtcacgacg 9001 tt //
